Silicone Resin Emulsion vs Solvent Based Resin for Coatings

Changing a coating from a solvent-based silicone resin to an emulsion changes more than its diluent. Resin delivery, pigment dispersion, drying and film development all need to work together. Two binders can have similar solids contents while requiring different formulation methods. The most useful comparison begins with resin chemistry and process compatibility, then normalizes the amount of dry binder before assessing the resulting coating.

Distinguish the Resin Chemistry from Its Delivery Form

An emulsion disperses resin in a continuous liquid phase rather than simply dissolving it in the same way as a conventional solvent solution. This affects how the supplied material mixes with pigments, additives and other binders.The underlying resin structure remains a separate choice. Methyl, methyl phenyl and organically modified silicone resins have different compositions. Switching between them while also changing the delivery form makes a coating comparison harder to interpret.Silfluo LR-E168 is a methyl phenyl silicone resin supplied as a water-dilutable emulsion. Its selection involves both the methyl phenyl resin and the emulsion formulation. The water-based delivery form alone does not establish the final coating's heat resistance, adhesion or chemical resistance.When comparing alternatives, identify which change is intended. A comparison between similar resin chemistries investigates delivery form more directly than a simultaneous change in resin chemistry, pigment system and curing process.

Compare Solids Content and Flow Data on Their Original Basis

The following Silfluo grades show why the measurement method belongs beside the number. Flow-cup results are times in seconds, not dynamic viscosity values in cP or mPa·s.

 The LR-162 and LR-608 tables do not state the same solids-test conditions as the LR-E168 table. Their reported values can guide initial comparison, but differences in test basis should be resolved before treating them as directly equivalent acceptance measurements.LR-608 illustrates a further distinction. A higher-solids methyl silicone resin supplies a different amount of binder per unit mass and has a different resin composition. It should not be interpreted as a concentrated version of LR-E168 solely because both belong to the silicone resin family.

Normalize Dry Binder Before Comparing Formulations

Equal Wet Mass Can Introduce Unequal Resin Mass

For an initial mass balance, dry binder mass equals supplied resin mass multiplied by its solids fraction. At a nominal 50% solids, 200 mass parts of supplied material provide 100 mass parts of solids. At a nominal 80%, 125 mass parts provide the same nominal solids mass.This arithmetic is a formulation comparison, not a prediction of equal coating performance. It removes one obvious imbalance before pigment loading, additives and film behavior are considered. Actual batch solids and the relevant test method remain important when setting a production formula.

Dry Mass and Dry Film Volume Are Different

Matching binder solids by mass does not automatically match dry-film volume or pigment volume concentration. Resin and pigment densities influence those calculations. An equal-mass comparison can therefore produce a different film thickness if the application is controlled only by wet coating weight.Define whether the comparison is intended to hold dry binder mass, coating thickness or another application quantity constant. This makes a resulting change in hardness or coverage easier to interpret and prevents a delivery-form change from being confused with a simple film-build difference.

Emulsions Require a Compatible Dispersion Sequence

A water-based formulation must remain compatible through pigment dispersion and binder addition. Strong mixing that is useful for dispersing pigment may be unsuitable for a sensitive emulsion at a later stage. Additives and pigment surfaces can also affect colloidal stability.For LR-E168, Silfluo's formulation guidance calls for preparing a water-based, resin-free color paste before blending it with the emulsion. This gives the pigment dispersion stage and the resin incorporation stage distinct roles. It is a more useful process direction than treating the emulsion as a solvent solution diluted with water.For solvent-containing LR-162, the compatible diluents and contamination controls are different. Water, acids, alkalis and reactive contaminants can affect its behavior. A waterborne recipe should therefore be reformulated around the new binder system rather than copied with a single diluent substitution.

Separate Evaporation from Film Development

Early Handling Strength Is an Intermediate Result

A coating that feels dry may still need further film development or curing before it reaches the intended properties. Water or solvent removal and chemical development of the resin are related processing events, but they are not interchangeable measurements.Evaluate the coating at the stage relevant to its next operation. A part that can be handled after drying has not necessarily completed the cure required for service. Record the drying and curing conditions separately when comparing binders.

Modified Resins Can Introduce Another Cure Mechanism

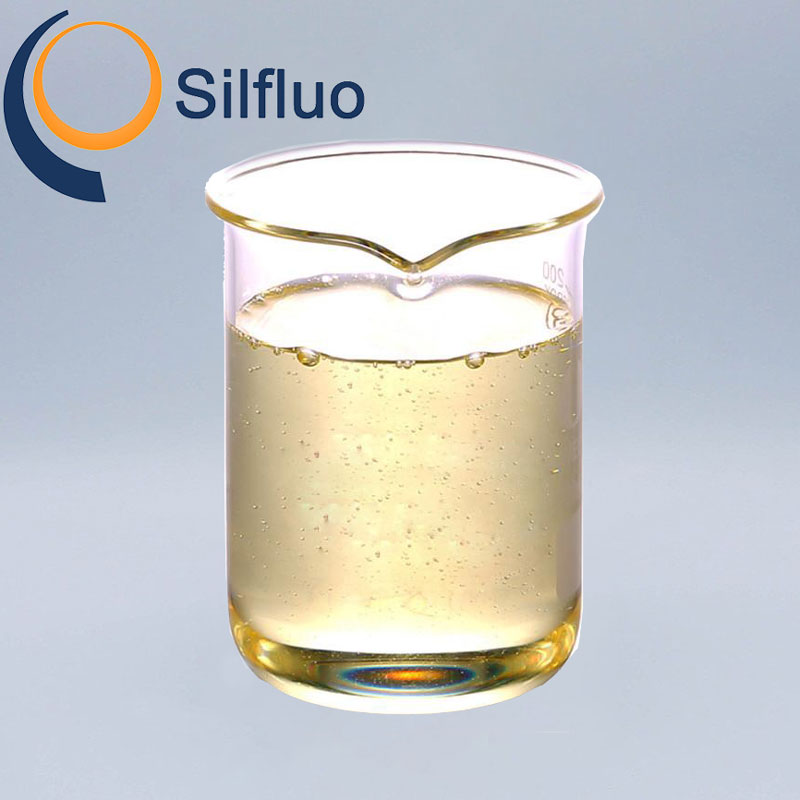

A silicone alkyd resin combines silicone modification with an organic resin system. Its drying profile should be assessed as the behavior of that specific binder rather than assumed to match an unmodified silicone resin.Silfluo LR-M125 is one example of this separate formulation route. Including such a material in a comparison may be worthwhile, but the purpose should be explicit: it changes resin chemistry as well as the possible processing behavior. It does not isolate the effect of water versus solvent.

Connect the Binder Choice to the Coating Line

An emulsion can be attractive when the coating process is designed around waterborne formulation and drying. A solvent-based resin can fit a line whose substrates, additives and equipment already match its processing requirements. Neither delivery form is universally superior.When comparing silicone resin suppliers, keep the discussion tied to the actual grade, solids basis, diluent compatibility and required cure. A general maximum-temperature statement is less useful than conditions that can be reproduced on the coating line.For a meaningful comparison, use consistent substrate preparation and an explicitly controlled dry-film thickness. Evaluate the properties after the relevant cure and exposure conditions. This helps identify whether a difference comes from binder chemistry, film build or the process used to form the coating.

Conclusion

Choose between a silicone resin emulsion and a solvent-based resin by matching delivery form to the formulation and coating process. Normalize dry binder, preserve the meaning of flow-cup data and distinguish drying from curing. These steps create a fair comparison and make the final binder choice easier to transfer into production.

Frequently Asked Questions

Can a Silicone Resin Emulsion Replace a Solvent Based Resin at Equal Mass

Only an assessment of solids content and formulation compatibility can establish a suitable replacement. Equal wet mass can introduce different amounts of dry binder and different liquid-phase components.

Are Flow Cup Seconds the Same as cP

No. A flow-cup value is an efflux time measured with a defined cup and temperature. It should not be relabeled as dynamic viscosity or compared directly with cP values.

Does Higher Solids Content Guarantee a Better Coating

No. It changes the amount of supplied material needed for a target solids mass. Film formation, application behavior, resin chemistry and cure still determine the practical result.

Is a Surface Dry Coating Fully Cured

Not necessarily. Early dryness can permit handling while further curing remains necessary. Evaluate final properties after the cure conditions appropriate to the chosen binder and application.

Does a Water Based Resin Automatically Have Zero VOC

No. The complete formulation may contain co-solvents or other volatile ingredients. Assess the actual composition and the relevant measurement rather than drawing that conclusion from the delivery-form description.
