Phenyltrimethoxysilane vs Phenyltriethoxysilane for Sol-Gel Coatings

Replacing a phenyl silane in a sol-gel coating can change the formulation even when the replacement contains the same phenyl group. The alkoxy groups affect hydrolysis and the alcohol released, while the number of hydrolyzable groups affects how the precursor can join a siloxane structure. A useful comparison therefore separates leaving-group chemistry from molecular functionality. This approach makes it easier to interpret changes in working time, clarity and film formation without attributing every result to phenyl content.

Separate the Phenyl Group from the Reactive Groups

Phenyltrimethoxysilane has one phenyl group and three methoxy groups attached to silicon. Phenyltriethoxysilane has the same number of phenyl and hydrolyzable groups, but ethoxy replaces methoxy. Both are trifunctional with respect to their hydrolyzable alkoxy positions.During hydrolysis, the alkoxy groups are replaced by silanol groups. Subsequent condensation creates siloxane connections. The phenyl group remains attached to silicon and contributes organic character to the developing material.This does not make the phenyl group equivalent to an epoxy, amino or methacrylate group. A phenyl silane should not be assumed to form a specific covalent bond with every organic binder. Its role can include modifying composition and interfacial compatibility, but the actual bonding mechanism depends on the other materials present.For formulation work, write down the intended role first: a network-building precursor, a modifier in a mixed sol or a surface-treatment component. That role provides a more precise basis for selection than a general claim about improved adhesion.

Methoxy and Ethoxy Change the Hydrolysis Conditions

Methoxy groups generate methanol during hydrolysis, while ethoxy groups generate ethanol. This affects the composition of the liquid phase as the reaction progresses. The original solvent choice is therefore only part of the solvent environment experienced by the sol.Comparing phenyl trimethoxy silane with an ethoxy alternative also requires attention to water availability, catalyst conditions, concentration and mixing. These variables influence hydrolysis and condensation together. A universal statement that one precursor provides a fixed multiple of the other's working time would be misleading without defined conditions.When phenyl triethoxysilane is introduced into an existing formulation, keep a record of the original molar water ratio and solvent composition. Replacing equal masses while leaving everything else unchanged is a different experiment from replacing equal numbers of precursor molecules.

Compare Product Identity Before Comparing Film Performance

The following Silfluo products provide several distinct phenyl-silane structures. The hydrolyzable-group counts follow their chemical identities; purity values are the listed GC values.

 These grades are different molecules rather than successive performance levels. A higher minimum purity does not establish a better coating, and two products with the same purity can have very different effects on the developing network.Use the chemical name and CAS number together when identifying the material. This is especially helpful when abbreviated product names omit whether the molecule contains one phenyl group or two, or whether the alkoxy functionality is two or three.

Compare Formulations on a Molar Basis

Sol-gel chemistry is governed by reacting groups, so equal volumes and equal masses need careful interpretation. Methoxy and ethoxy precursors have different molecular masses. Their densities also differ. A volume-for-volume substitution therefore changes both the mass introduced and the number of precursor molecules.For an initial controlled comparison, normalize the precursor quantity by moles and express water relative to the hydrolyzable alkoxy groups. Also record catalyst concentration and the order of addition. This makes the comparison easier to interpret because the main substitution has a defined chemical basis.The calculation does not guarantee identical behavior. Differences in solvent compatibility and reaction kinetics remain relevant. Its value is that an observed change can be assessed without an unnoticed change in the number of reacting groups complicating the result.A production formula can ultimately use mass-based quantities. The molar comparison helps establish those quantities rationally instead of treating two similar names as an automatic one-for-one replacement.

Difunctional Phenyl Silanes Change the Network Design

Two Phenyl Groups Also Reduce Alkoxy Functionality

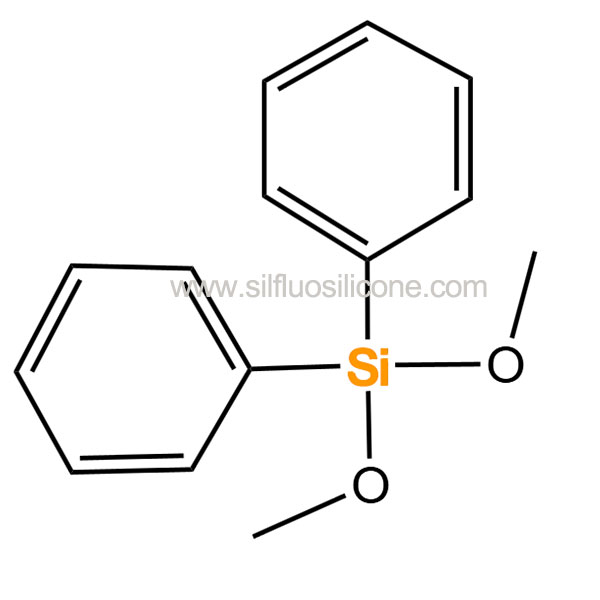

Introducing diphenyldimethoxysilane changes two variables at once. The molecule contains two phenyl groups, and it has two methoxy groups rather than three. It therefore supplies a different balance of organic substitution and potential siloxane connections.In an idealized structure, a difunctional silane supports chain-like connections, while a trifunctional silane can contribute branching. A mixed system can contain both roles. Actual film behavior still depends on composition, condensation and processing, so reduced functionality should not be presented as a guaranteed improvement in flexibility.

A Methyl Phenyl Structure Provides Another Comparison

Silfluo LS-M13, also described as phenylmethyldimethoxysilane, has one phenyl group, one methyl group and two methoxy groups. It allows a formulation comparison in which the number of hydrolyzable groups is the same as LS-M12 but the organic substitution differs.This distinction helps separate a change in phenyl loading from a change in network functionality. It is more informative than comparing only total silane percentage and assuming all phenyl-containing materials perform the same task.

Interpret Clarity and Working Time Together

A clear sol is useful for a transparent coating, but clarity alone does not establish the extent of reaction. A formulation can remain clear while its molecular composition changes. Conversely, cloudiness can arise from poor initial compatibility, growing particles or aggregation.Record when the appearance changes relative to mixing and application. An immediate cloudy mixture suggests a different problem from a mixture that becomes turbid only after aging. Comparing these observations with viscosity development helps distinguish compatibility problems from loss of working stability.Film evaluation should then connect back to the application. A precursor that produces a stable liquid but requires an unsuitable curing process may be a poor production choice. Keep coating thickness and substrate preparation consistent so that differences in the finished film can be interpreted meaningfully.

Conclusion

Choose between phenyltrimethoxysilane and phenyltriethoxysilane by considering hydrolysis conditions and the liquid phase, while treating difunctional phenyl silanes as a separate network-design decision. Comparing molecules and reactive groups on a consistent basis makes formulation changes easier to explain and gives each candidate a defined purpose.

Frequently Asked Questions

Do the Methoxy and Ethoxy Products Contain the Same Phenyl Functionality

Each contains one phenyl group and three hydrolyzable alkoxy groups. The difference is the methoxy or ethoxy leaving group, which changes the hydrolysis byproduct and formulation conditions.

Is Phenyltrimethoxysilane Automatically a Better Adhesion Promoter

No. Adhesion depends on substrate preparation, coating chemistry, condensation and curing. The presence of a phenyl group does not establish a universal bonding mechanism with organic binders.

Can the Two Trifunctional Products Be Replaced at Equal Mass

Equal mass introduces different numbers of molecules. A controlled comparison should account for molecular quantity and hydrolyzable-group equivalents before assessing a practical replacement ratio.

Why Would a Formulator Add a Difunctional Phenyl Silane

It changes the balance between organic substitution and potential siloxane connections. Its value depends on the structure required in the mixed formulation rather than a universal ranking of silane types.

Does a Clear Sol Prove That the Coating Will Be Stable

No. Reaction and molecular growth can continue without immediate cloudiness. Working stability requires observations over the intended processing period and evaluation of the resulting film.
