How to Choose Silicone Damping Oil by Viscosity and Temperature

A rotary damper can feel smooth on a workbench yet become unacceptably stiff in a cold room. A mechanism that closes correctly when new may also move faster after prolonged operation. Choosing a damping fluid therefore starts with the required motion, the temperature range and the clearances inside the device. The viscosity printed on a container helps narrow the candidates, but the final choice depends on how that fluid behaves in the assembled mechanism.

Define the Motion Before Choosing the Oil

Specify what the device should do at the beginning, middle and end of its travel. A lid damper may need low initial resistance followed by controlled closing. A rotary control may need an even turning feel. An instrument mechanism may need to settle quickly without repeated oscillation. These are different requirements, even when all three applications use silicone oil.Record the relevant speed, load and temperature conditions before comparing grades. In a simple viscous device, resistance depends on viscosity together with the fluid gap, wetted area and movement speed. A narrow clearance can produce considerable resistance with a fluid that would feel thin in an open beaker.This explains why a viscosity recommendation from another mechanism is only a starting point. Keeping the hardware constant makes a fluid comparison useful. Changing both the oil and the damper geometry makes it difficult to identify which change produced the result.

Read Dynamic and Kinematic Viscosity Correctly

Compare Values at the Same Temperature

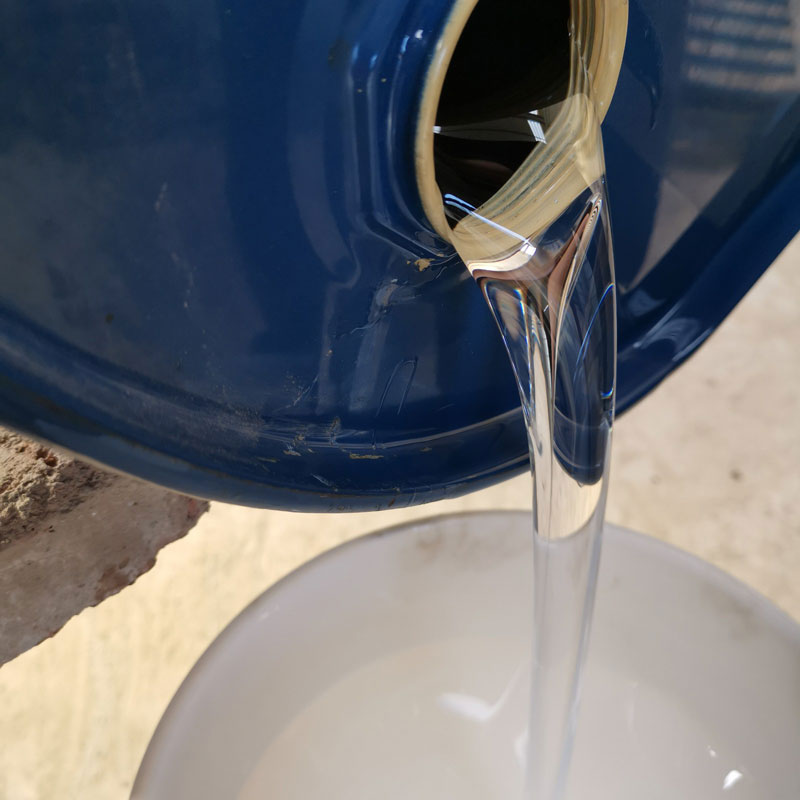

Dynamic viscosity is commonly reported in mPa·s or cP. These units have the same numerical value. Kinematic viscosity is commonly reported in mm²/s or cSt, which also have the same numerical value within that pair. However, cP and cSt are different quantities.To convert between them, divide dynamic viscosity in mPa·s by density in g/cm³ to obtain kinematic viscosity in cSt. Both measurements must refer to the same temperature. Comparing a viscosity measured at 25°C with a density measured at 20°C introduces an avoidable inconsistency.The distinction matters when comparing dimethyl silicone oil from different specifications. Silfluo reports its LF-201 viscosity values in mPa·s at 25°C. A grade number should therefore be checked against the unit heading before it is treated as equivalent to a product sold in cSt.

Separate Measurement Conditions from Application Limits

A flash point, a short-term volatility test and a continuous operating temperature describe different things. A high flash point does not establish the temperature at which a filled damper will retain its original response over its intended life. Keep these properties in separate fields when comparing candidate fluids.

Use Published Grades to Build a Sensible Shortlist

The following examples show the range available within Silfluo's dimethyl fluid families. The density intervals and viscosity tolerances belong to the listed grades.

 For a fast-moving device with fine passages, low viscosity silicone oil may provide a more practical starting point than an extremely thick grade. The tradeoff is lower viscous resistance in the same geometry. Fluid containment also needs attention because an oil that flows readily can expose weaknesses in sealing or assembly.For mechanisms requiring much stronger resistance, a silicone damping oil in the LF-221 family offers a higher viscosity range. The two published LF-221 grades are screening options, not a promise that either will produce a particular closing time or torque in every device.

Evaluate Cold Start and Warm Operation Separately

Cold Start Can Determine Usability

Oil becomes more viscous as temperature falls. The practical consequence may be a control that requires excessive force or a lid that takes too long to close. A room-temperature measurement cannot establish whether the device remains usable at its lowest specified temperature.Evaluate the first movement after the entire assembly has reached the cold condition. Moving the device into a warm room before checking it can obscure the problem because the housing and fluid start warming immediately.

Warm Operation Can Reduce Resistance

Higher temperature generally reduces fluid viscosity. Repeated movement can also warm a small fluid volume. Measure motion after the device reaches the relevant operating condition, especially when duty cycles are frequent.Some applications justify comparing a phenyl silicone oil with a conventional dimethyl grade. That comparison should use the specific grade's viscosity and temperature data. Phenyl substitution alone does not establish the correct damping response or an acceptable cold-start force.

Account for Filling and Containment

A fluid selection can appear unsuccessful when the underlying problem is incomplete filling. Trapped air compresses, moves and changes the effective fluid path. The resulting delay or uneven feel may be incorrectly attributed to oil viscosity.Very viscous oils can be harder to dispense into narrow cavities. Filling consistency, air removal and the time allowed for the fluid to settle can therefore affect repeatability between assemblies. Evaluate those process conditions alongside the grade itself.Seal and plastic compatibility also belong in the decision. A suitable fluid should remain contained without causing unacceptable dimensional changes in nearby materials. An oil's general reputation for low reactivity does not replace an assessment of the actual elastomers, plastics and adhesives used in the device.

Diagnose the Pattern Before Changing Viscosity

If resistance is too high at every condition, consider a lower viscosity alongside a review of the fluid gap. If the device works at room temperature but fails only in the cold, focus on temperature response. If nominally identical units behave differently, examine filling, air and component tolerances before changing the formulation.A changing response over time requires a different investigation. Look for fluid loss, contamination, changes in seals or evidence of degradation. Simply increasing the starting viscosity can hide the symptom while leaving the cause in place.Keep observations tied to a defined motion. Closing time, turning torque and overshoot are more useful than descriptions such as “smooth” or “thick.” A candidate can then be selected against the requirement the mechanism actually needs to meet.

Conclusion

Choose a damping fluid by connecting a correctly interpreted viscosity value to the required motion, operating temperature and hardware geometry. Silfluo's published grades provide a practical range for initial comparison. Consistent filling and measurements on the assembled device then distinguish a suitable grade from one that only looks suitable on a data sheet.

Frequently Asked Questions

Is Silicone Damping Oil the Same as Silicone Grease

No. An oil is a fluid, while a grease contains a thickening system that gives it different flow and retention behavior. A grease cannot be selected as a direct replacement using only the viscosity of its base oil.

Does a Higher Viscosity Always Improve Damping

Higher viscosity usually increases resistance in the same geometry, but too much resistance can prevent the intended movement. The correct grade meets the required response across the operating conditions.

Can cSt and mPa·s Be Compared Directly

They require a density conversion. Divide dynamic viscosity in mPa·s by density in g/cm³ to obtain cSt, using values measured at the same temperature.

Why Does the Same Oil Feel Different in Two Dampers

The fluid gap, moving surface area, speed, fill condition and seals all affect the response. An oil grade does not define the behavior of the complete assembly.

Can Two Silicone Oil Grades Be Blended to Reach a Target Viscosity

Compatible grades may be blended, but viscosity should not be assumed to follow a simple arithmetic average. Measure the blend and evaluate its response in the intended device before adopting it.
